Description
Details

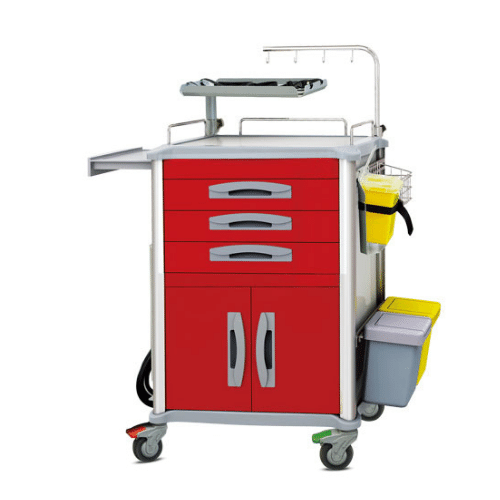

| Product Name | Emergency cart |
| Model NO. | MA-QJ |
| Series | MA series |
| Measurements and Weight | |
| Dimensions (W x D x H) [mm] | 700 x 480 x 970 |
| Net Weight kg] | 55 |
| Max. Loading of each drawer [kg] | 50 |
| Max. Total Loading [kg] | 220 |
| No. of Drawer | 3/4/5/6 or more… |
| Height of the Drawer [mm] | 110 |
| Castors*4 (Ø 100 mm) | Two with brakes and one with a directional lock |
| Wall Bumper | 4 Corners |
| Fence | The three-sided fence around the worktop |
| Materials | |
| Pillar | 4 Pillars made of aluminum alloy pillar PVDF coating. |
| Side and Back Boards | Aluminum composite panel |
| Worktop | 304 Stainless steel plate |
| Drawer | Aluminum molded drawer/Aluminum plate drawer |
| Drawer handle | ABS |
| Fence | 304 Stainless steel |
| Wall Bumper | ABS |
| Color | Choice of 18colors combined freely |
| Lock system | Seals lock/Digital lock /Central control lock |
| Accessories | Extendable Table |
| Waste Bin | |
| Anti-slip Mat | |
| Drawer Divider, transparent | |
| Oxygen bottle holder | |
| Wire Basket : 230 x 110 x 140 mm | |
| IV Pole: L-shaped, 4 hooks | |
| Defibrillator shelf holder |
MA series Medical cart features:
• Surface: ABS molded table mounting 304 stainless steel plate, features abrasion resistance and corrosion resistance;
three-sided 304 stainless steel fence to avoid any falling of materials.
• Pillar: Aluminum alloy pillar PVDF coating.
• Board: High-quality aluminum composite panel for sideboard and backboard.
• Drawer: All drawers are detachable design, and easy to clean and replace.

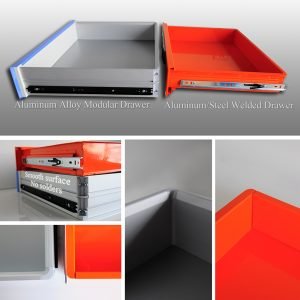

Aluminum molded drawer (Hereinafter AMD)
Aluminum plate welded drawer (Hereinafter AWD)
• Drawer handle: ABS
• Spaces: Lager and classified storage with ABS medicine cups or ABS dividers.
(For aluminum molded drawer, the lowest height is 110mm, other types could be lower)
• Castor: Noise-free castor with brake, of which diameter is 100mm.
• Round bumper: on the bottom of the trolley body.
• Loading: Drawer loading: 50KG; Overall loading: 200KG.
